Product Description
Designed for manufacturers requiring efficient emulsification of high-viscosity materials, this vacuum emulsifying machine is suitable for producing cosmetic creams, ointments, and similar products. It targets users needing precise texture control and hygienic processing, including OEM/ODM operations in personal care and pharmaceutical sectors. The 50L to 100L volume range accommodates pilot to medium-sized batch production.
The machine features separate oil and aqueous phase tanks, vacuum defoaming, and optional heating jackets powered by electric or steam sources. Powered by three-phase motors with multiple control modes, it offers variable installation configurations including fixed or movable bases. The PLC touchscreen control supports semi-automatic and manual operations, adapting to diverse electrical standards and providing stable emulsification with particle size down to 1 µm.
This vacuum emulsifier homogenizer fits production environments requiring integrated heating, cooling, and vacuum mixing controls. Its design suits manufacturing of skincare, pharmaceutical ointments, and chemical pastes with consistent texture and homogeneity. It supports scaling production efforts and product development activities while maintaining hygiene and quality standards typical to cosmetic and pharmaceutical manufacturing.
The machine’s modular design with separate tanks and customizable heating options allows sourcing flexibility across different production specifications. Its support for various electrical supplies facilitates integration into existing facilities globally. Suitable for businesses requiring OEM/ODM customization or targeted batch sizes, it provides pragmatic sourcing potential from vacuum emulsifier machine manufacturers.
With options for PLC control, explosion-proof boxes, and remote monitoring, this vacuum emulsifying mixer machine supports operational oversight and compliance considerations. The construction facilitates ease of maintenance and process stability important for routine commercial manufacturing. These features align with procurement needs for consistent quality and streamlined operations across production lines like shampoo production line or toothpaste production line.
Equipment details parameters:

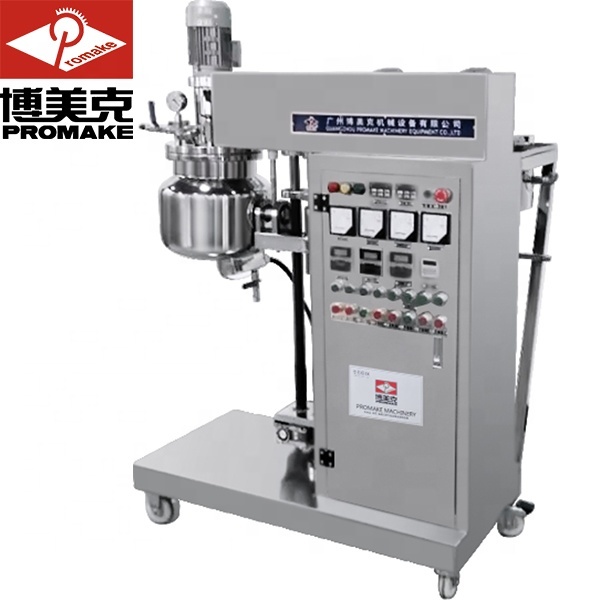

Fixed vacuum emulsifying machine PMK-50L/100L with separate tanks (AC 380V/50Hz, three-phase five-wire)
| No. | Spec. | Main motor |
RS motor |
HM motor |
Total power |
Main tank effective volume | Main tank wall thickness | Oil phase pot volume | Aqueous phase pot volume | Note |
| 1 | PMK-50L | 0.75kw/0-63rpm | 0.37kw/0-63rpm | 2.2kw | 17kw | 50L | 4/3/2.5mm | 20L | 40L | Separate tank body |
| 2 | PMK-100L | 1.5kw/0-63rpm | 0.55kw/0-63rpm | 4kw | 29kw | 100L | 4/3/2.5mm | 40L | 80L | Separate tank body |
Intended Uses and Scope of Application：
Developed by integrating and optimizing advanced equipment technologies from around the world, this vacuum emulsifying mixer is a premium production unit designed for mid-to-high-end cosmetics and pharmaceutical manufacturing.
The equipment features rapid homogenization, precise heating and cooling, and vacuum defoaming. It stands out with its exceptional emulsification performance (achieving a particle size of 1μm), superior hygienic standards, high thermal efficiency, and reliable electrical control. Additionally, it offers stable operation, easy maintenance, and low labor intensity.
Perfectly suited for practical applications, it is the ideal equipment for manufacturing pastes, creams, and lotions. It is also widely applicable in the pharmaceutical, food, and fine chemical industries for processing high-viscosity materials.
2.1 Daily Chemicals and Cosmetics Industry: Skin care creams, shaving creams, hair creams, toothpaste, cold creams, sunscreens, facial cleansers, nourishing lotions, detergents, shampoos, etc.
2.2 Pharmaceutical Industry: Latex, emulsions, ointments, oral syrups, and liquids.
2.3 Food Industry: Sauces, cheese, oral liquids, nutritional fluids, baby food, chocolate, confectionery, etc.
2.4 Chemical Industry: Latex, pastes, saponified products, paints, coatings, resins, adhesives, lubricants, etc.
