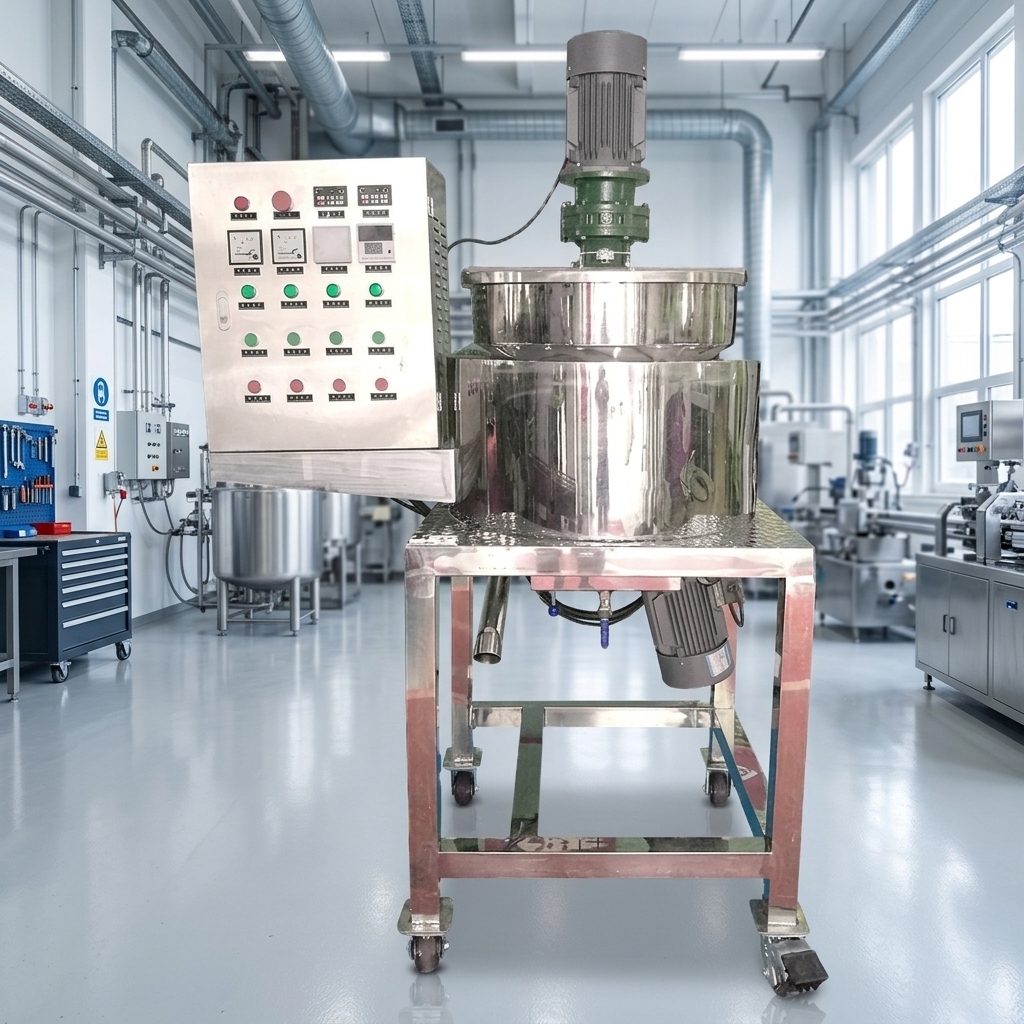

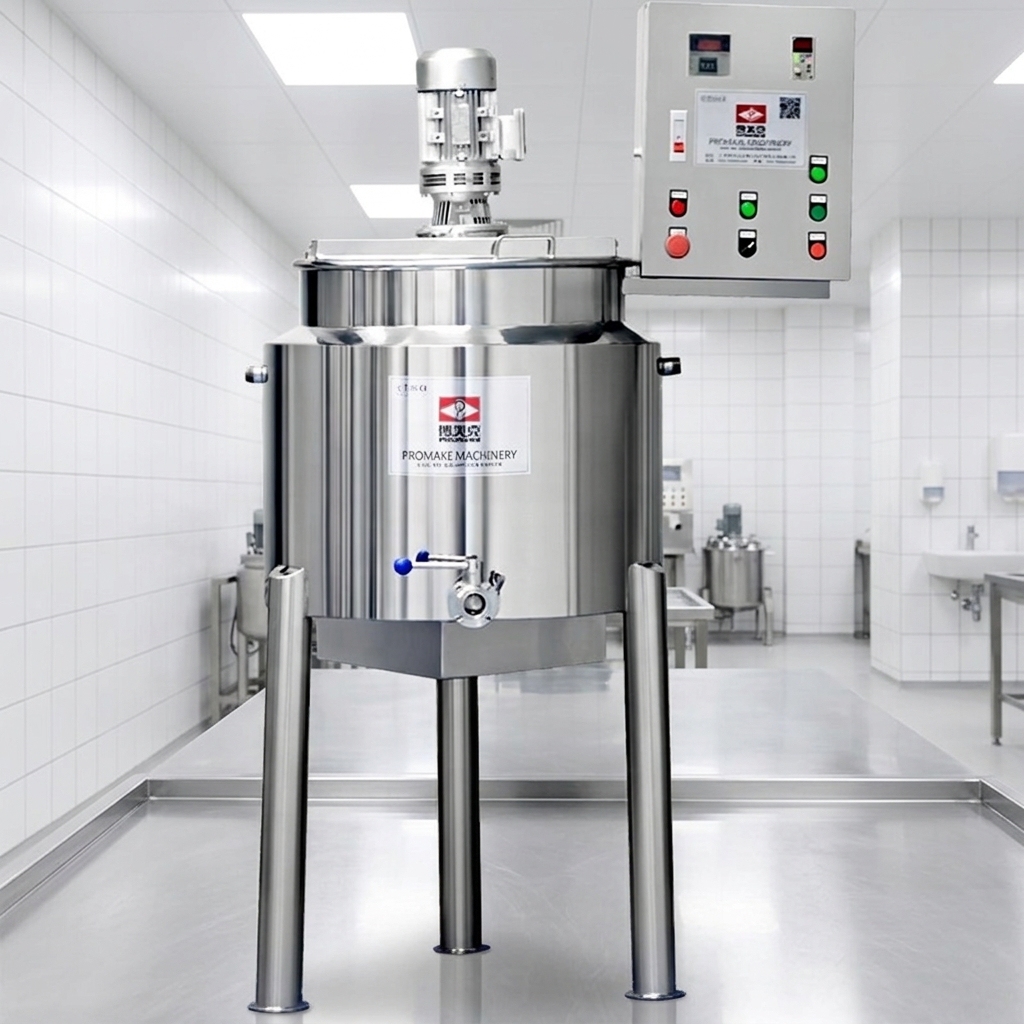

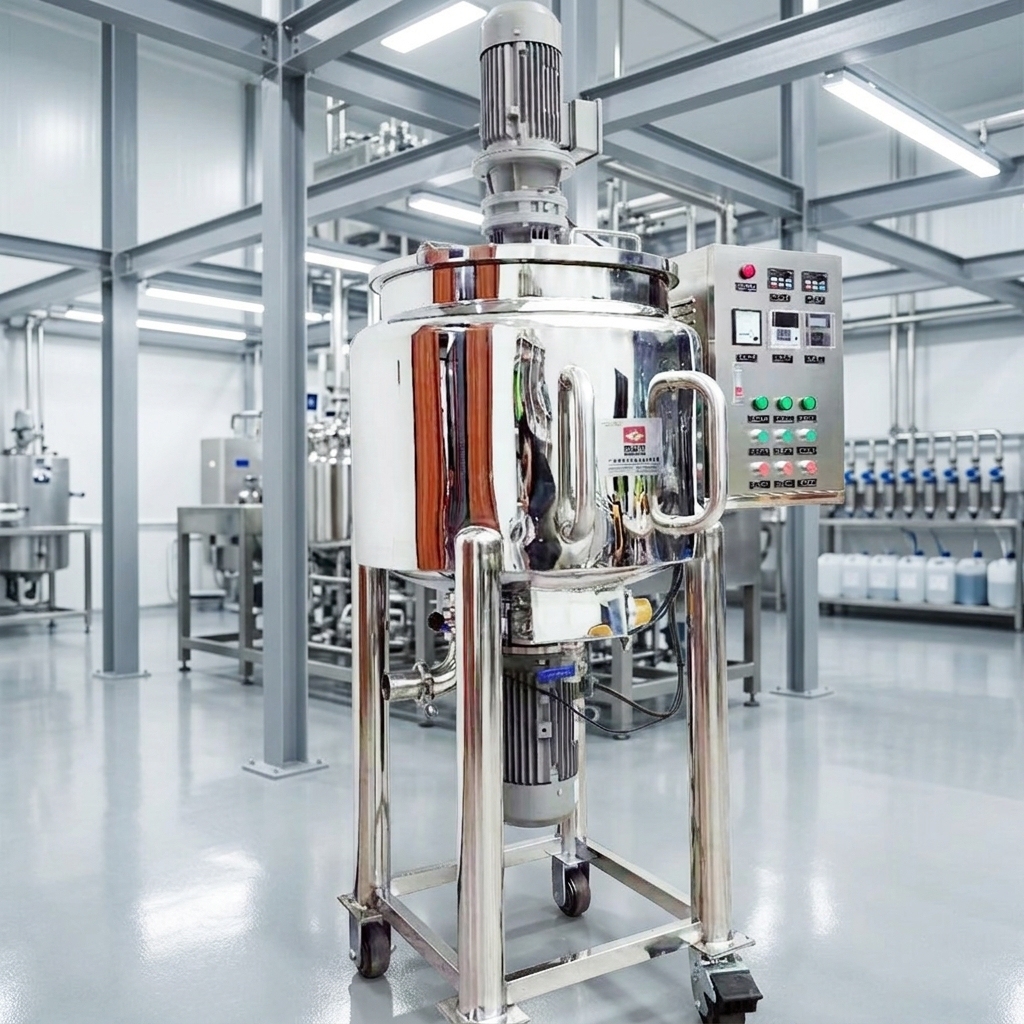

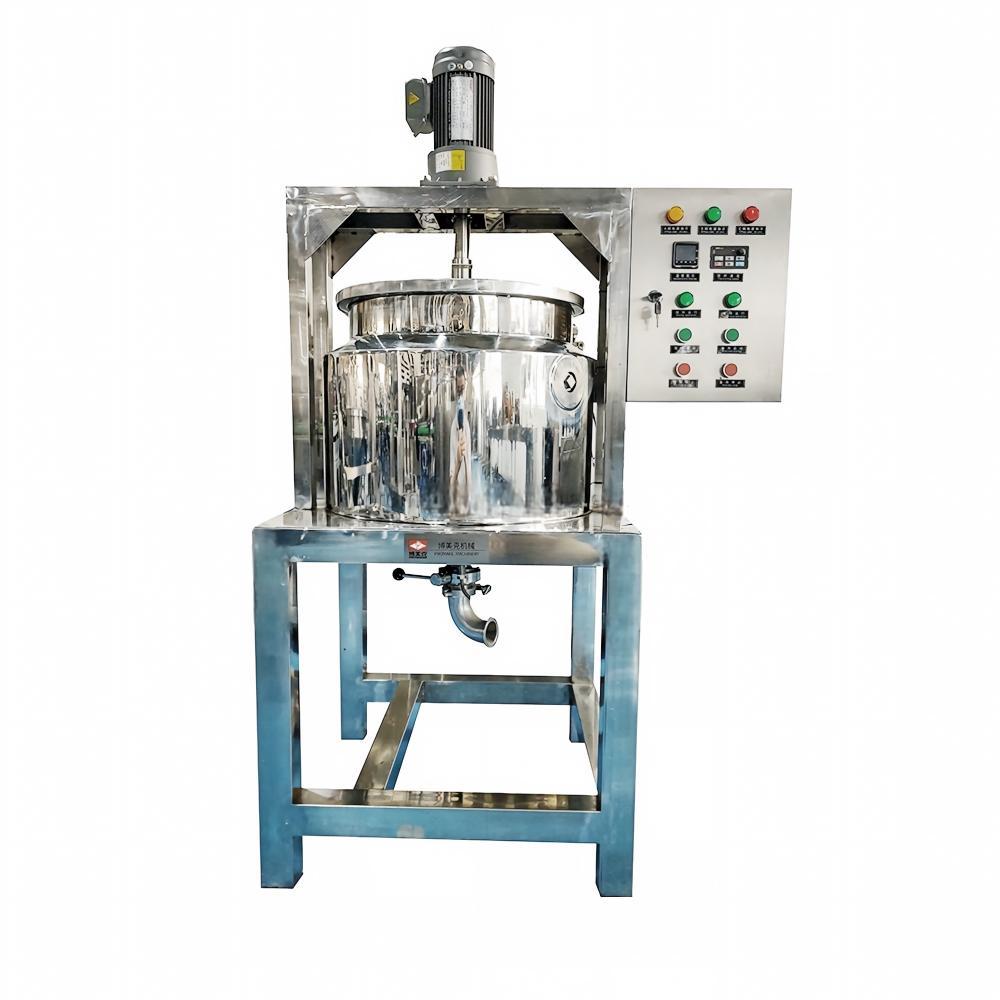

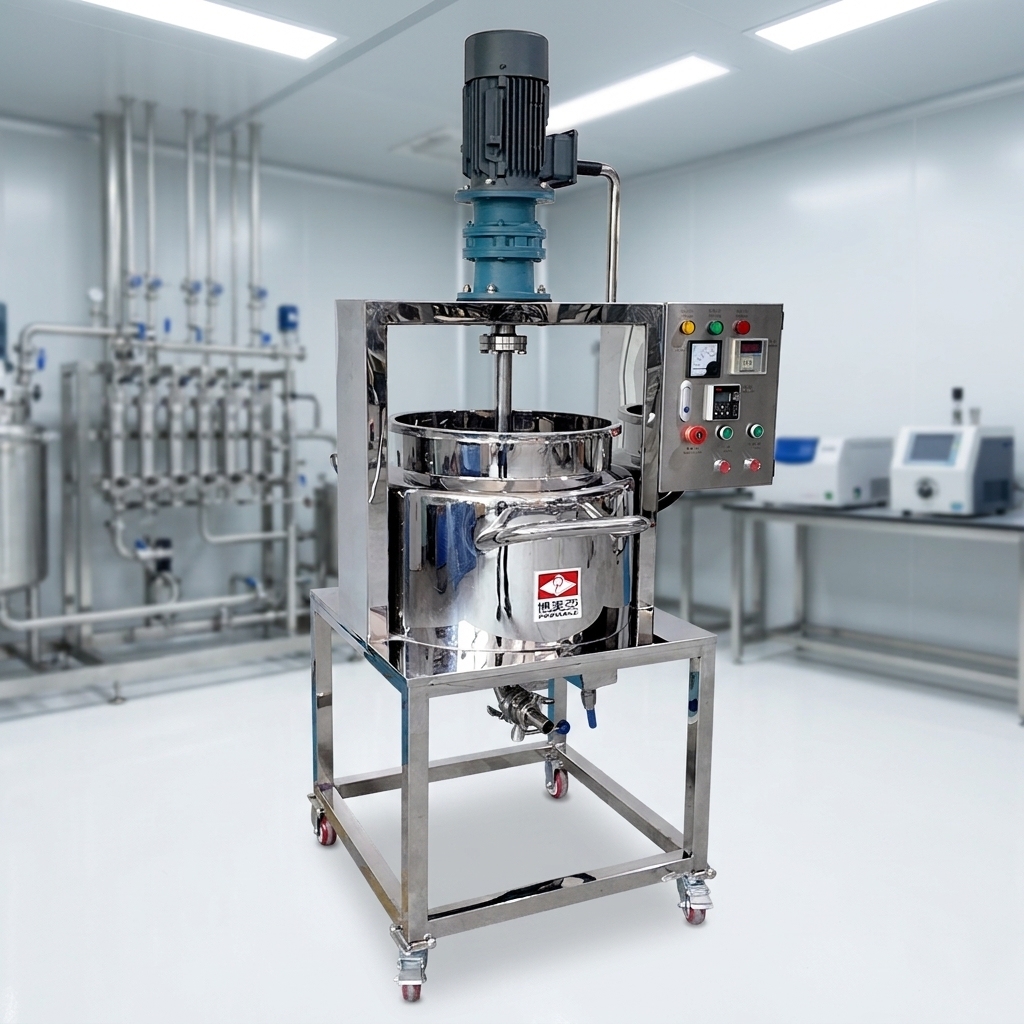

Mixing tank 50L to 100L

Equipment details parameters:

Mixing tank YEX-50L/100L  (AC 380V/50Hz, three-phase five-wire)

1. Overview and Scope of Application

1.1 Overview of Liquid Washing Mixing Tanks
Liquid washing mixing tanks are essential equipment commonly used by daily chemical enterprises for producing cosmetics, shampoos, shower gels, and hand sanitizers. Through the slow-speed stirring of the impellers inside the tank, the materials are fully blended and mixed to meet specific production process requirements. Once the materials enter the tank, the variable-speed impellers ensure thorough and uniform mixing. During the stirring process, the electric heating jacket is used to heat up or cool down the materials. The system allows for a specific temperature setting: the heating device automatically stops when the target temperature is reached and resumes heating when the temperature drops below the set point.

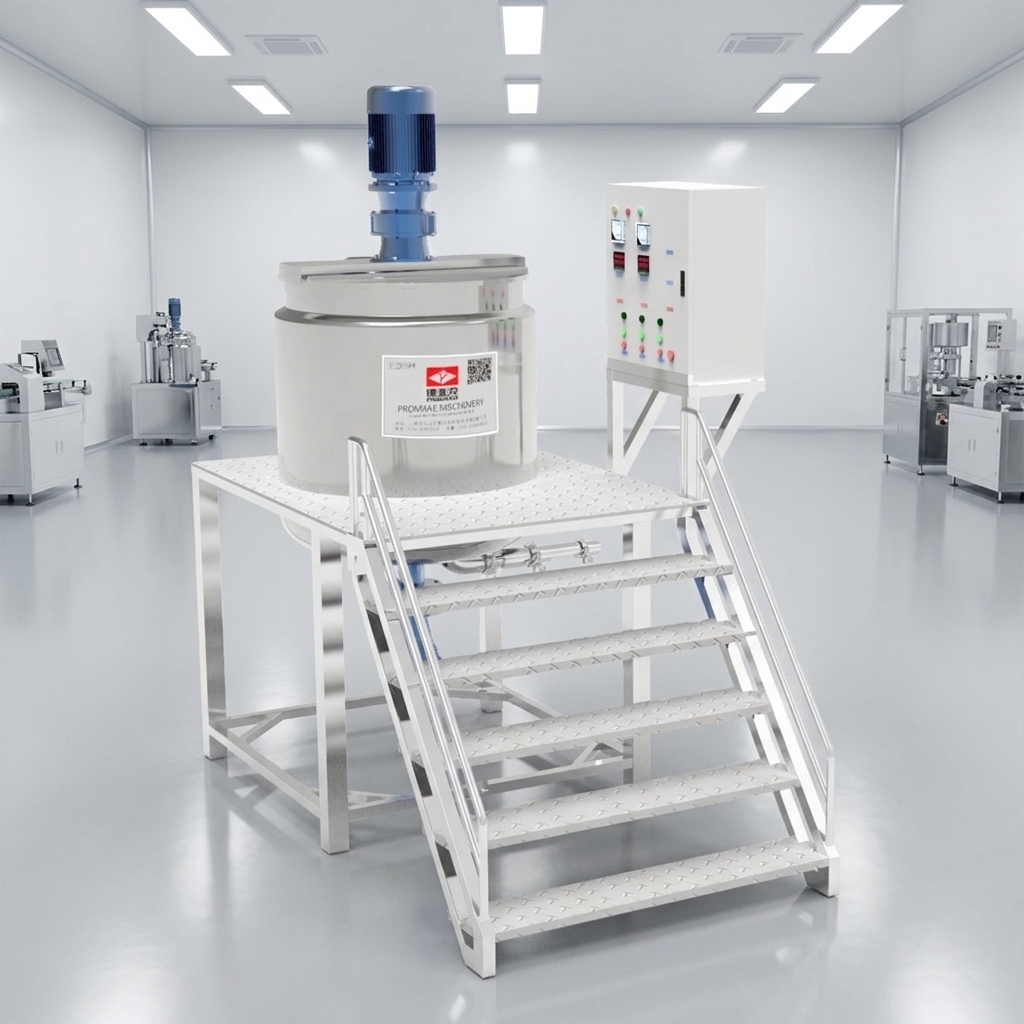

Optionally, the tank can be equipped with an operating platform. By mounting the control cabinet on this platform, operators can manage heating, stirring speed, and heating time all from the same operating level. This design ensures convenient operation and high efficiency!

1.2 Overview of Homogenizers
A homogenizer is a highly efficient machine that integrates mixing, emulsification, and dispersion for hot or cold feeds (including both liquids and solids). Utilizing the powerful kinetic energy generated by its mechanical structure, the material is forced through the narrow gap between the stator and the rotor. Within this gap, the material undergoes hundreds of thousands of hydraulic shear, centrifugal extrusion, impact tearing, and turbulent flow effects per minute. Driven by the appropriate formulation and additives, immiscible phases are instantly and uniformly dispersed and emulsified. Through high-frequency cyclic processing, the machine ultimately produces high-quality products with a fine and stable texture.

2. Scope of Application

This equipment is widely applicable across various industries, including liquid detergents, textile auxiliaries, pharmaceuticals and healthcare, food and beverages, flavors and fragrances, and fine chemicals.
